HP48X100T-3 High Quality Hot Pressing Machine Manufacturer
Parameters
|
Model |
HP48X100T-3 |
|
Maximum pressure |
100T |
|
Number of working layers |
3 |
|
Number and specifications of hot press plate |
4-42x2500x1300mm |
|
Spacing of hot press plate |
300mm |
|
Oil cylinder |
90x8pcs |
|
Hydraulic motor power |
4kW |
|
Heat pump power |
2.2kW |
|
Heating pipe power |
27kW |
|
Dimensions |
3550x1700x1900mm |
|
Net weight |
8200kg |
Introduction

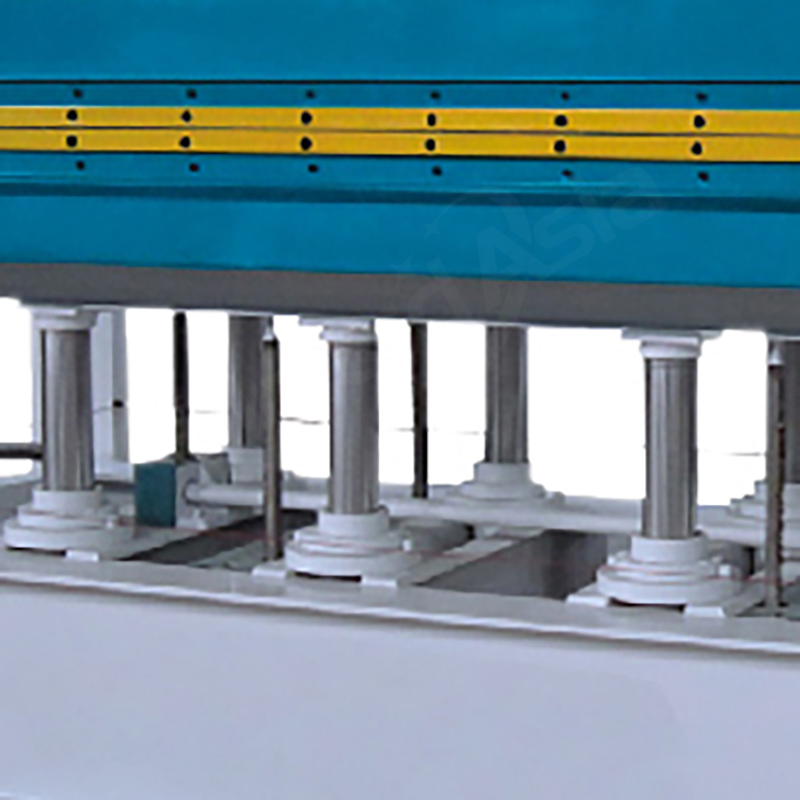

- Pressure plate design with uniform temperature distribution system over the entire surface.
- The pressure plates run parallel and smoothly, resulting in good processing results.
- Rigid structure prevents thermal deformation and provides long service life.

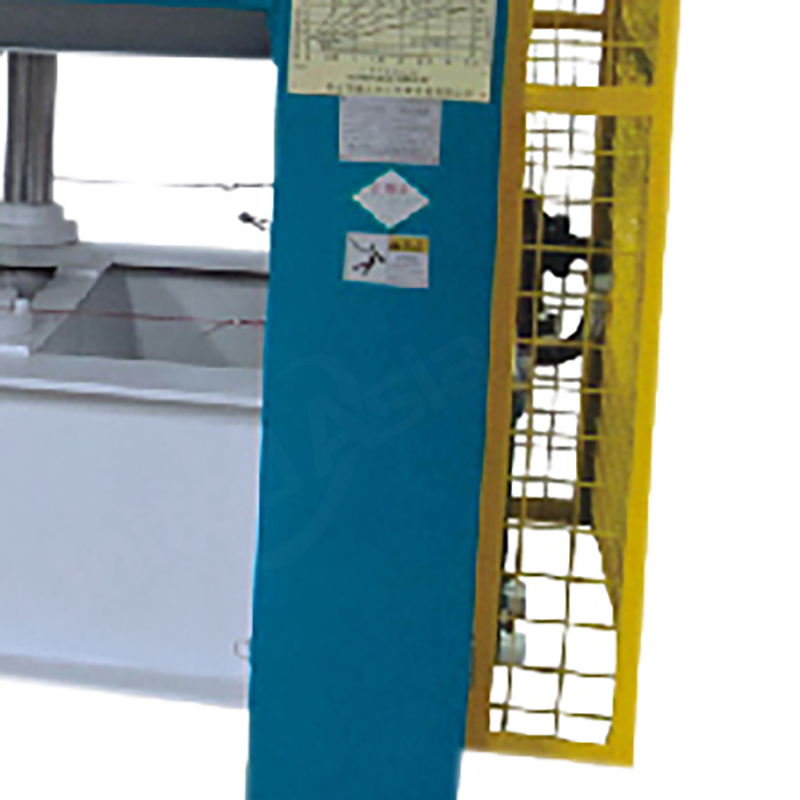

- Equipped with an emergency stop control device to ensure the safety of operators.
