MJ163 Single Rip Saw For Wood Cutting Machinery

Short Description:

The MJ163 single rip saw for wood cutting machinery is a sharp tool that can greatly improve the efficiency of wood processing. It can not only improve production efficiency and wood processing quality, but also has the characteristics of simple operation, safety and reliability. If you are a practitioner in the wood processing industry, you may wish to consider introducing a single rip saw for wood cutting machinery to make your production more efficient and of higher quality. As a supplier of single blade saws for wood cutting machinery with rich industry experience, we provide you with high-quality products and services. If you are interested in our products or have any questions, please feel free to contact us. We look forward to working with you to create a better future!

Send email to us

Product Detail

Product Tags

Details

MJ163-Single-Rip-Saw-For-Wood-Cutting-Machine-2

MJ163-Single-Rip-Saw-For-Wood-Cutting-Machine-3

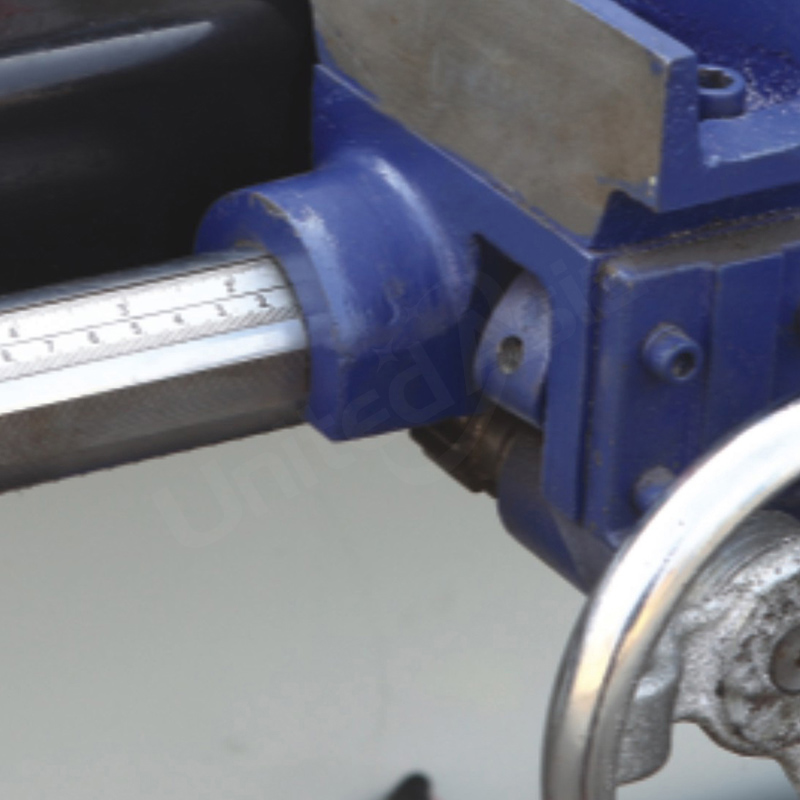

MJ163-Single-Rip-Saw-For-Wood-Cutting-Machine-4

MJ163-Single-Rip-Saw-For-Wood-Cutting-Machine-5

MJ163-Single-Rip-Saw-For-Wood-Cutting-Machine-6

MJ163-Single-Rip-Saw-For-Wood-Cutting-Machine-7

Parameters

Model	MJ163
Saw blade diameter	255-355mm
Max processing thickness	80mm
Short processing length	250mm
Spindle width	L250/R500mm
Spindle speed	2900r.p.m
Spindle diameter	50.8mm
Feeding speed	3-26m/min
Main motor power	9kw
Feed motor power	0.75kw
Total power	9.75kw
Blade thickness	3.2-5.0mm
Working desk size	1750x860mm
Dimensions	1950x1380x1350mm
Machine weight	970kg

Introduction

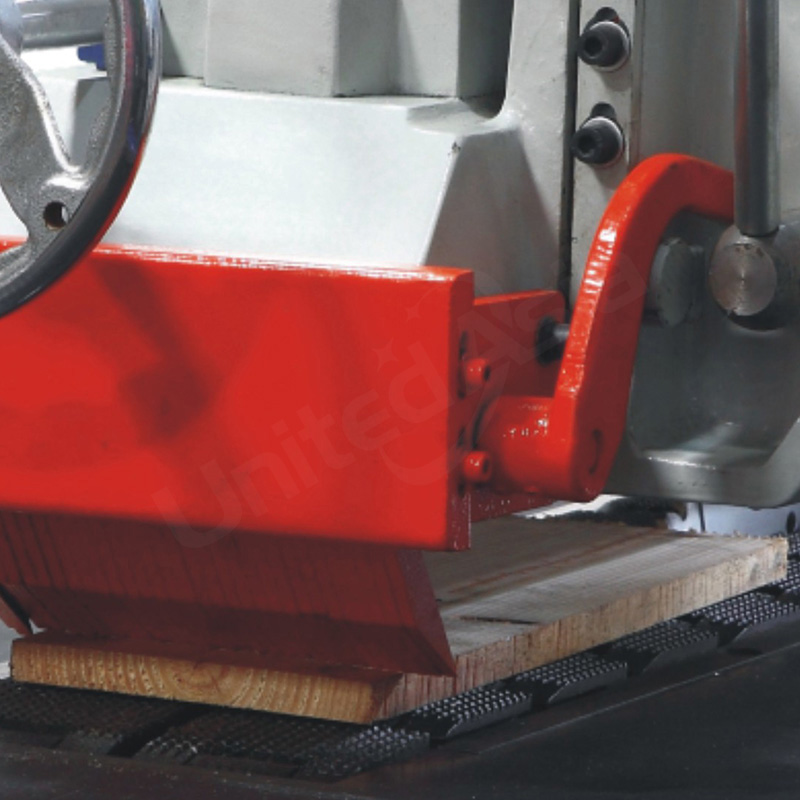

- Unique double-end bearing support and multi-V-shaped precision-made linear guides with high hardness and good wear resistance make the conveying chain precise and stable.

- Unique direct connection design between spindle and motor, no power loss, no noise and high precision.

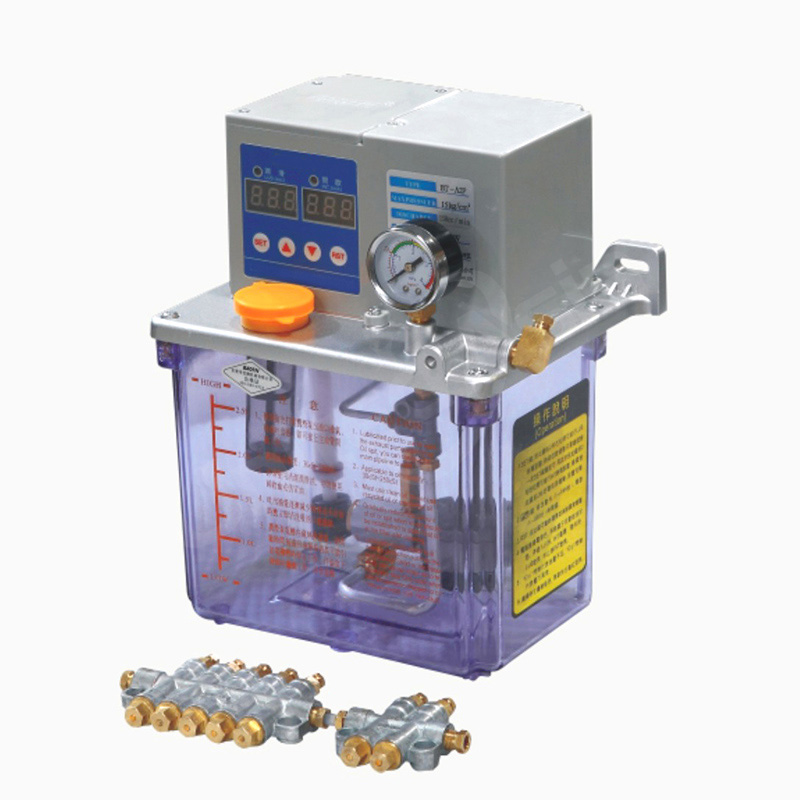

- Unique volumetric lubrication system ensures excellent lubrication performance and allows workpieces to be transported smoothly and accurately.

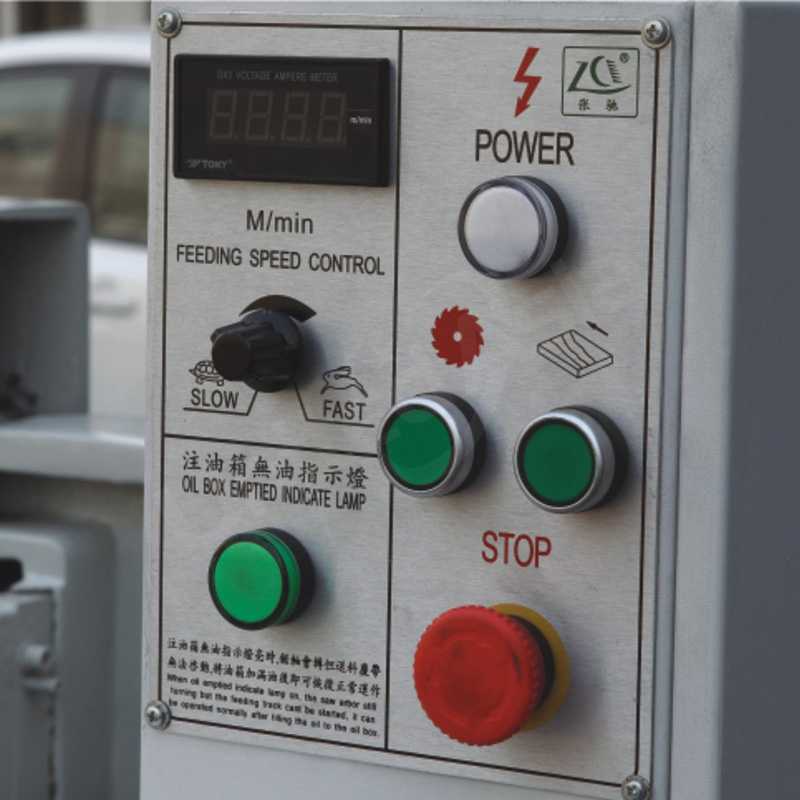

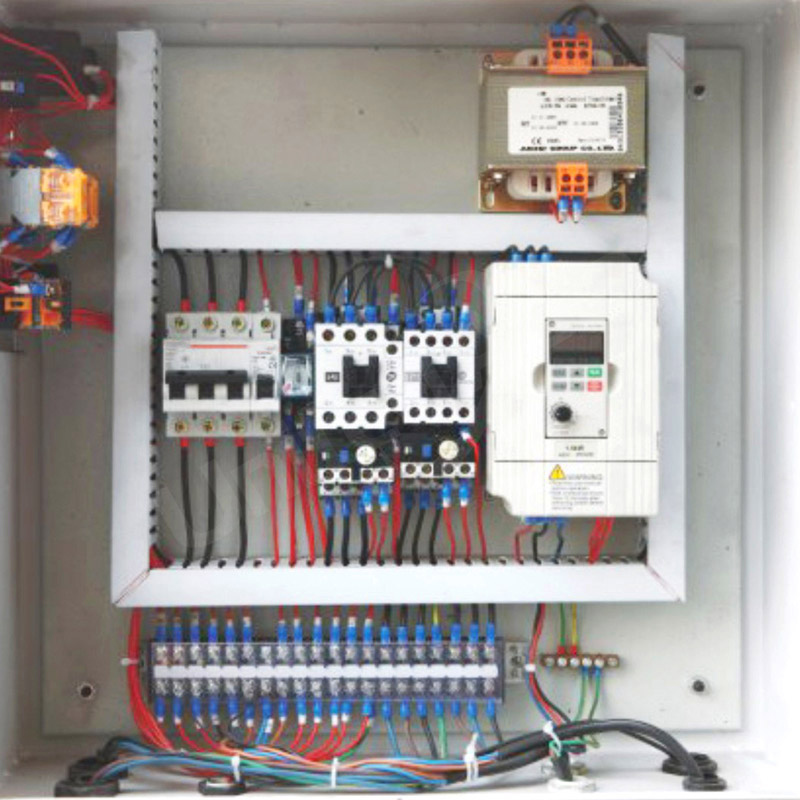

- Using variable frequency speed control to feed materials, the sawing speed of soft and hard wood is reasonable, the cuts are smooth, and the size of the workpiece is more accurate.

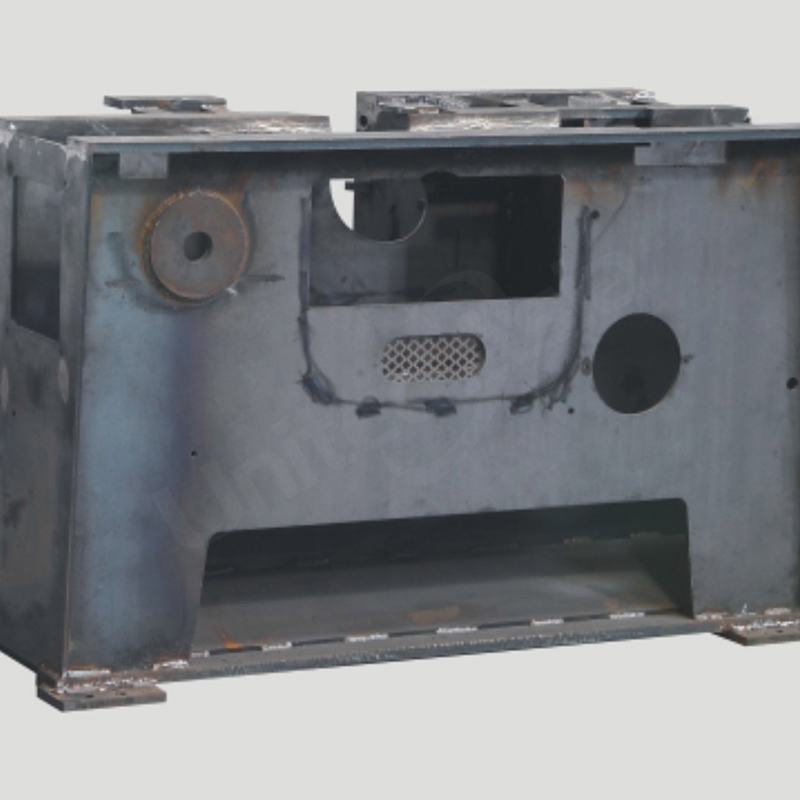

- The steel plate of the fuselage adopts snap-on laser welding process, which is high in strength and more beautiful.
