UA3200S Multifunctional Woodworking Sliding Table Saw Wholesale

Short Description:

The UA3200S multifunctional woodworking precision sliding table saw is an essential and highly valued tool within the woodworking industry, effectively meeting the diverse needs of professionals with its outstanding features. Renowned for its high-precision cutting capabilities, the machine ensures precise and accurate results, catering to the meticulous nature of woodworkers who prioritize attention to detail. Its multifunctional application further enhances its versatility, allowing for a wide range of woodworking tasks to be effortlessly accomplished with efficiency and precision.

Safety and reliability are paramount in any woodworking equipment, and the UA3200S excels in providing a secure and stable working environment. The sliding table design not only offers exceptional stability but also reduces the risk of wobbling during cutting, ensuring a smooth and controlled operation. Moreover, the powerful motor integrated into the machine powers uninterrupted cutting, guaranteeing seamless performance and consistent high-quality results.
If you are interested in it, please contact us.


Product Detail

Product Tags

Introduction

Introduction (1)
Introduction (2)
Introduction (3)
Introduction (4)

* 1 Year warranty on sliding table.

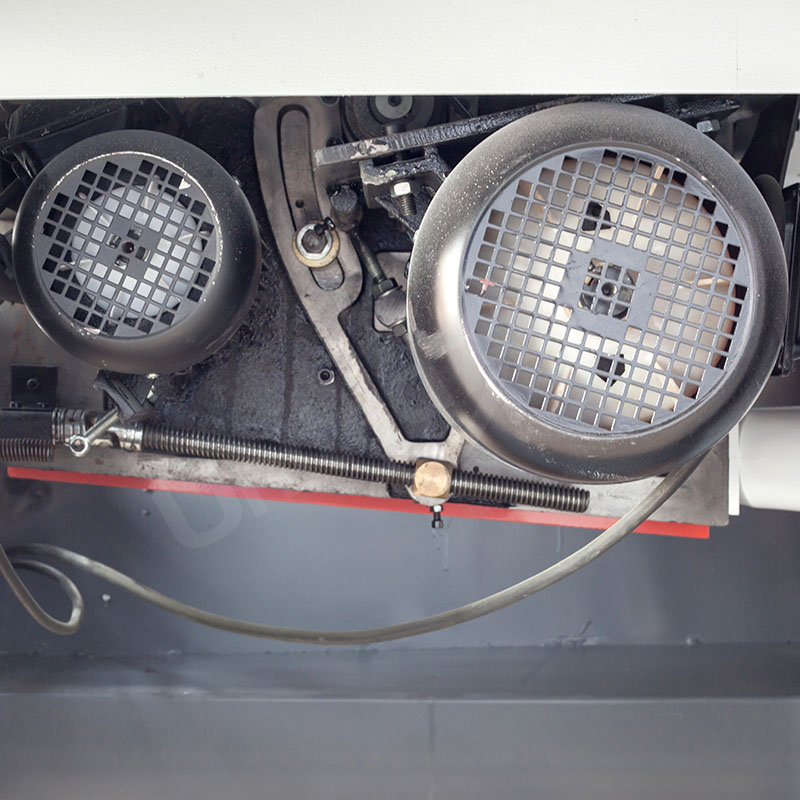

- The main blade and scoring unit have independent motors with strong power.

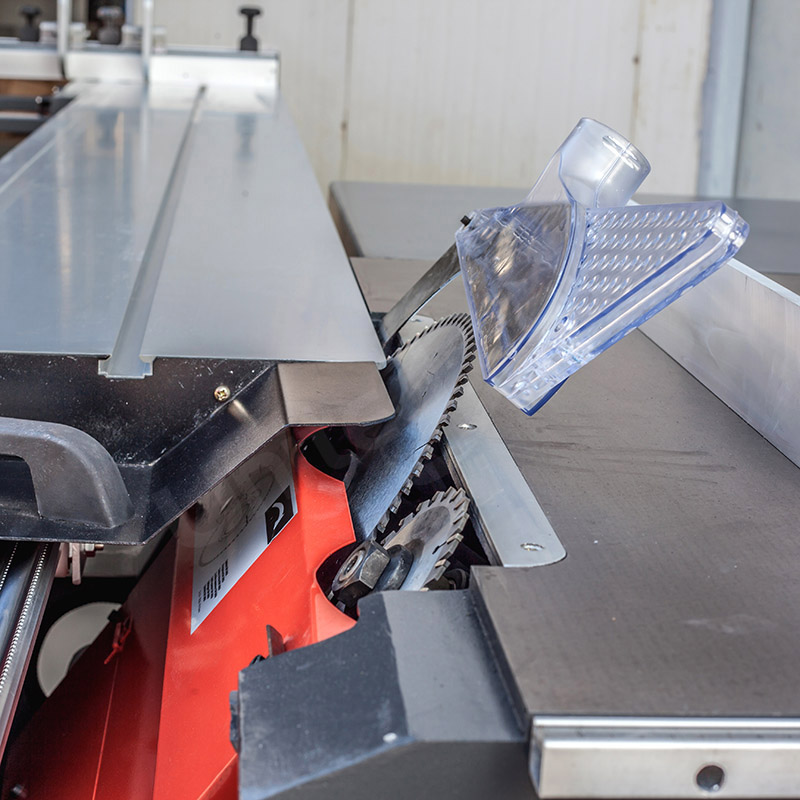

- Double saw blade structure, adjustable 45°-90° cutting.

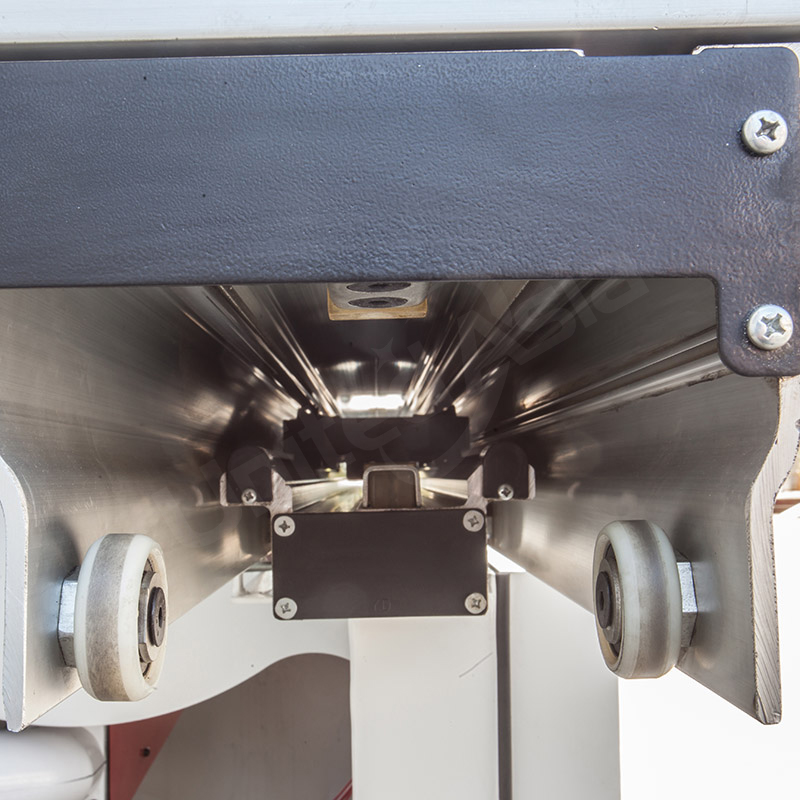

- Round rod guide rail with high positioning accuracy.

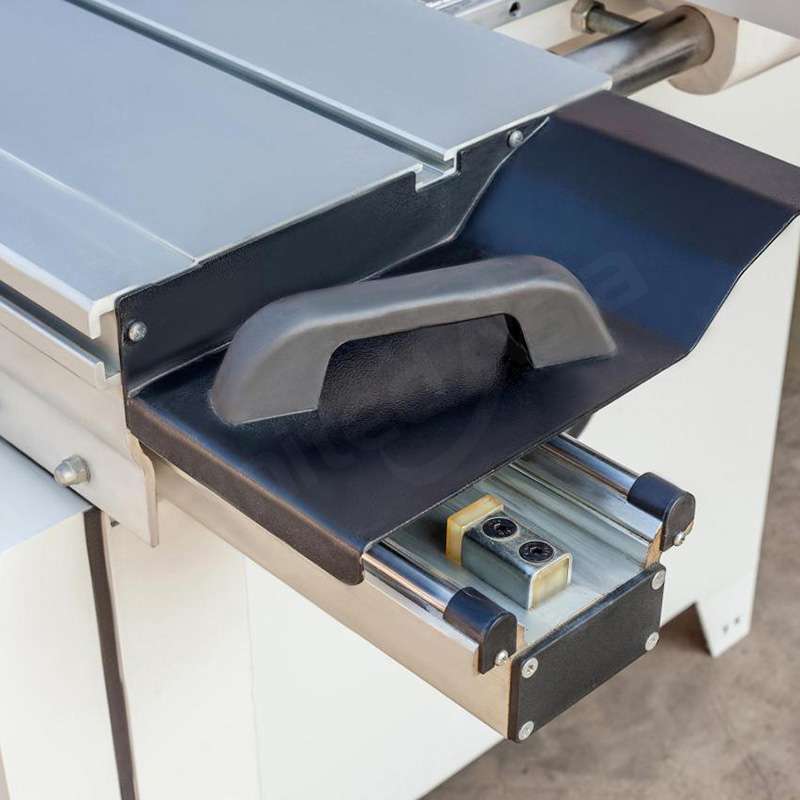

- Enlarge the slide frame to support stronger cutting force.

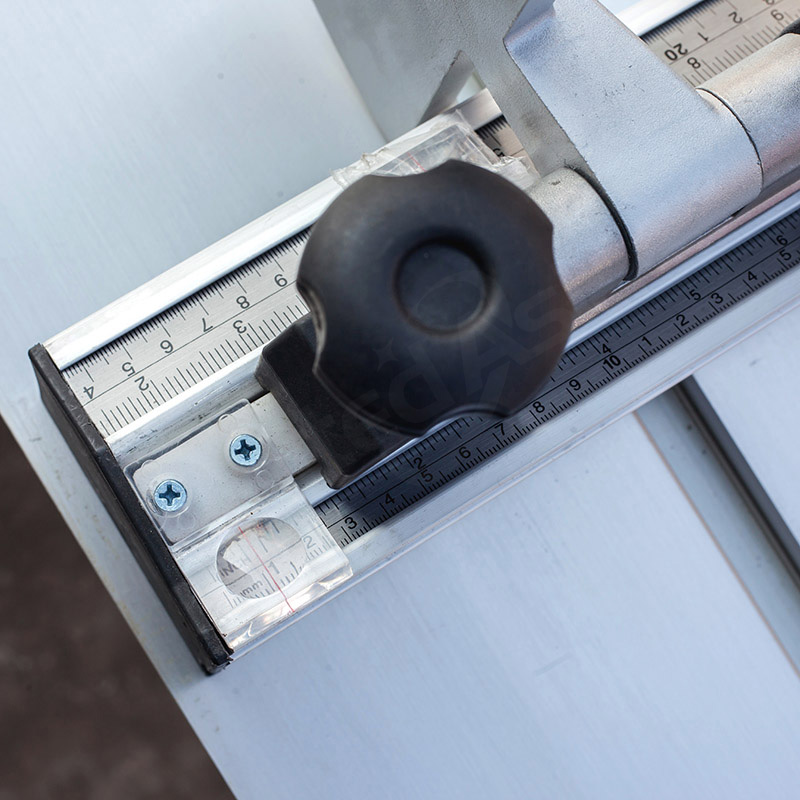

- 90° fast positioning design across the fence, stable and non-displaceable.

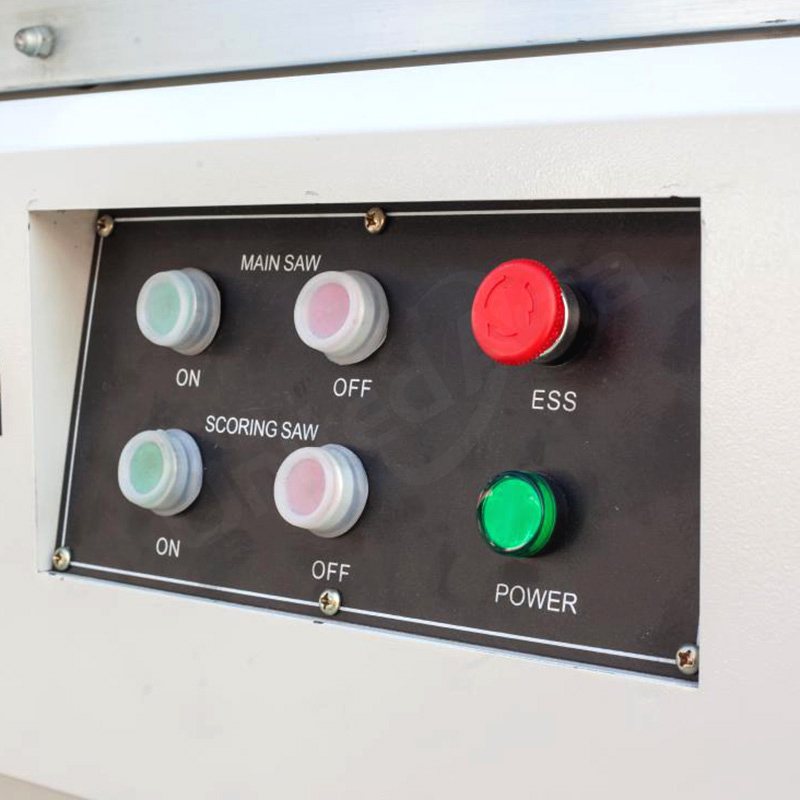

- Independent button switch for safe operation.

Parameters

Model

UA3200S

Dimension of sliding table saw

3200x375mm

Gross cut capacity

3200mm

Width of cut between saw blade and ripe fence

1250mm

Saw blade

300mm(250-350)

Height of cut 300mm

70mm

Speed of main saw blade

6000r.p.m

Tilling saw blade

45-90 degree

Main motor

5.5kw(7.5HP)

Scoring saw blade diameter

120mm

Speed of scoring saw blade diameter

8000r/min

Scoring motor

1.1kw

Weight

750kg

Overall dimensions

3200x2550x900mm

Structures

Packaging & Loading
