MJ330 Wood Panel Cutting Computer Beam Saw Vendor
Details

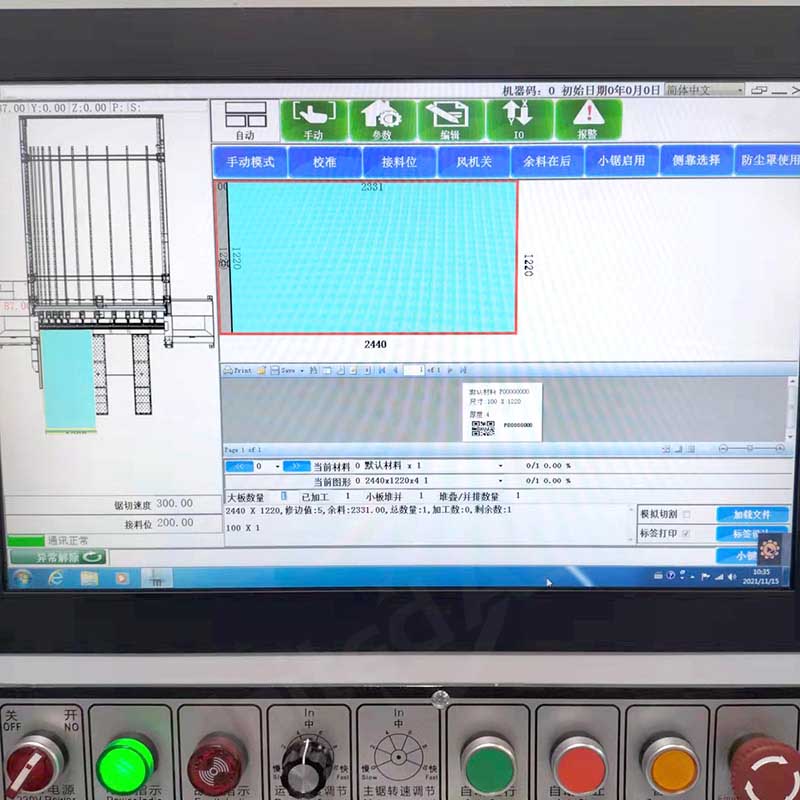

- The control system is safe and reliable to operate, with a simple interface and complete operating instructions and troubleshooting guides. It can edit and manage sawing plans, edit and manage sawing tasks, and simulate sawing. It is compatible and integrated with a variety of sawing optimization software, barcode management software, and factory automation software.

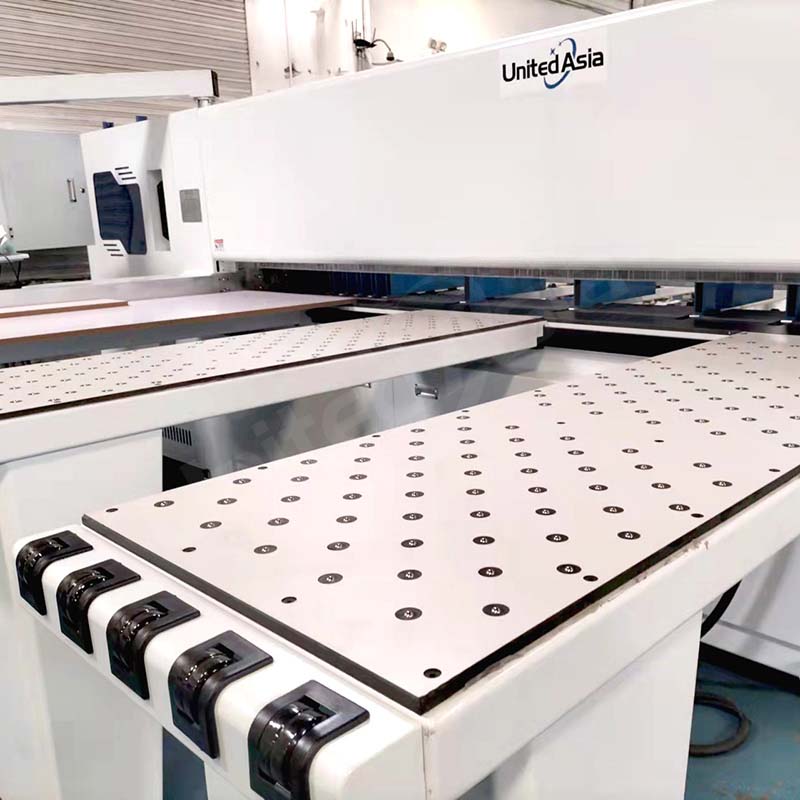

- The work surface adopts a pneumatic float table to effectively prevent the board from being scratched, and the board is easier to move.

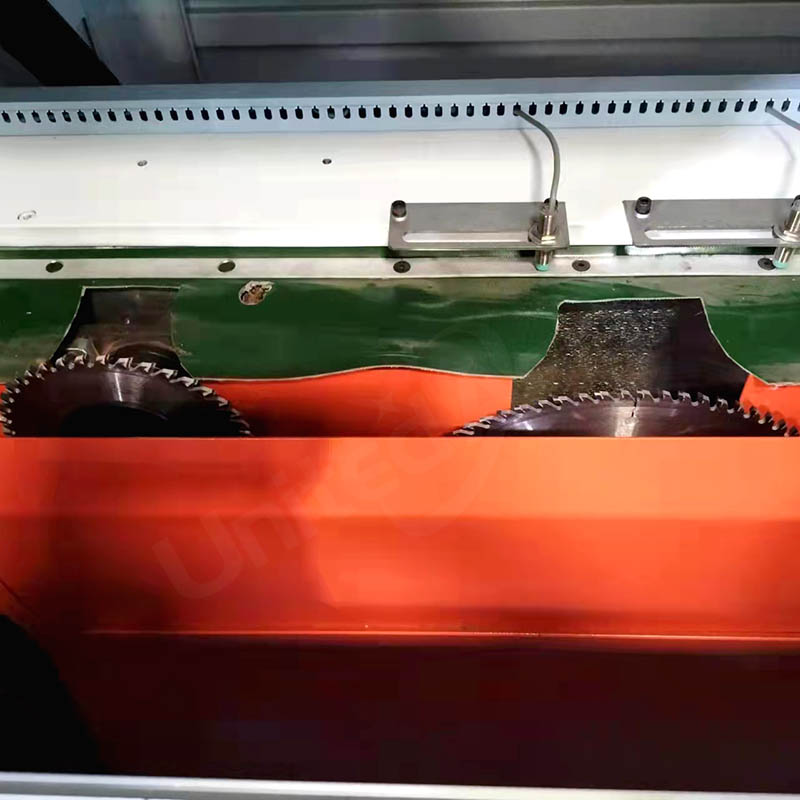

- The main saw and the auxiliary saw adopt an independent lifting control system, which can automatically position the sawing stroke according to different sawing heights and widths, reduce the idle stroke time, and improve work efficiency.

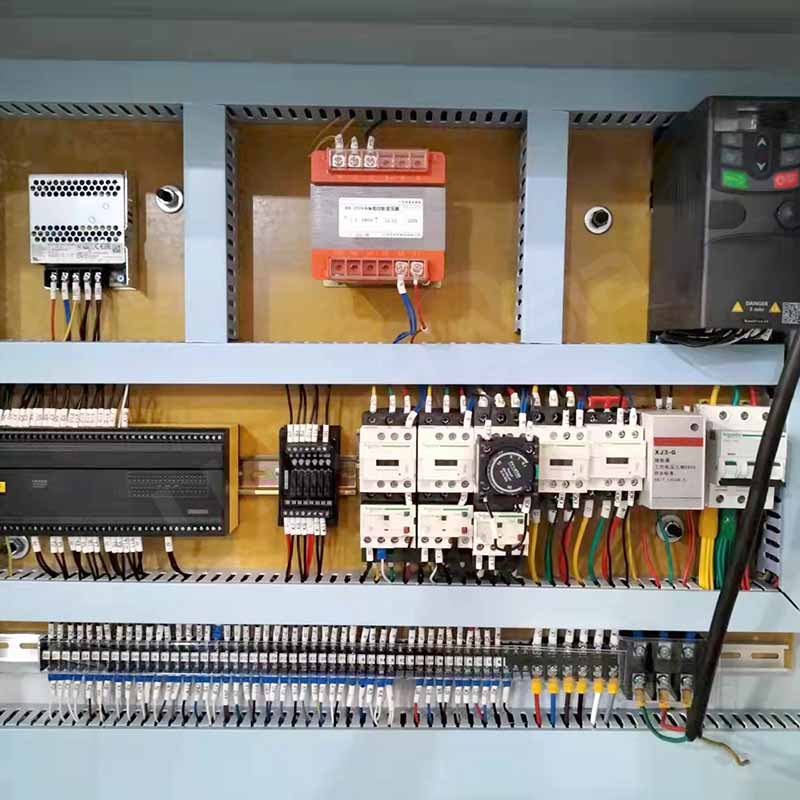

- High-quality electrical components, neat lines, to ensure the stability of electrical components.
Parameters
|
Model |
MJ330 |
|
Maximum sawing length |
3280mm |
|
Maximum sawing thickness |
120mm |
|
Main blade diameter |
Φ350-450mm |
|
Main saw blade shaft |
Φ75mm |
|
Main blade speed |
4800m/min |
|
Secondary saw blade diameter |
Φ200mm |
|
Secondary saw blade shaft |
Φ50mm |
|
Secondary saw blade speed |
7000m/min |
|
Saw cutting speed |
0-100m/min |
|
Overall size(L x W x H) |
5556x5950x1890mm |
|
Saw back speed |
0-120m/min |
|
Main saw drive motor |
15kw |
|
Secondary saw drive motor |
2.2kw |
|
Saw seat servo drive |
2kw |
|
Feed servo motor |
2kw |
|
High pressure air supply motor |
2.2kwx2 |
|
Automatic feeding speed |
0-120m/min |
|
Use air pressure |
6-8Mpa |
Introduction
In the woodworking industry, there is an increasing demand for precise cutting of wooden boards. To meet this need, we recommend an innovative wood panel cutting computer beam saw. This MJ330 wood panel cutting computer beam saw has an advanced operating system, and through the screen interface, you can easily set it up. With simple operation, you can achieve precise cutting without complicated manual adjustments and wasted time. Make your wood board cutting process more efficient while improving work efficiency. The high-quality mechanical structure and stable base design ensure the stability of the saw and make cutting more stable and smooth. We are professional wooden cutting computer electronic saws vendors and are committed to the design, manufacturing, sales and services of high quality woodworking machinery products. It not only frees you from complicated manual operations, but also ensures that every board is cut accurately. Please consult us to learn more and make the cutting board easier and pleasant!
