HP48X120T-3 High Quality China Hot Presser Factories
Parameters
|
Model |
HP48X120T-3 |
|
Maximum pressure |
120T |
|
Number of working layers |
3 |
|
Number and specifications of hot press plate |
4-42x2500x1300mm |
|
Spacing of hot press plate |
120mm |
|
Oil cylinder |
100x8pcs |
|
Hydraulic motor power |
4kW |
|
Heat pump power |
2.2kW |
|
Heating pipe power |
48kW |
|
Dimensions |
3500x1700x2200mm |
|
Net weight |
8000kg |
Introduction

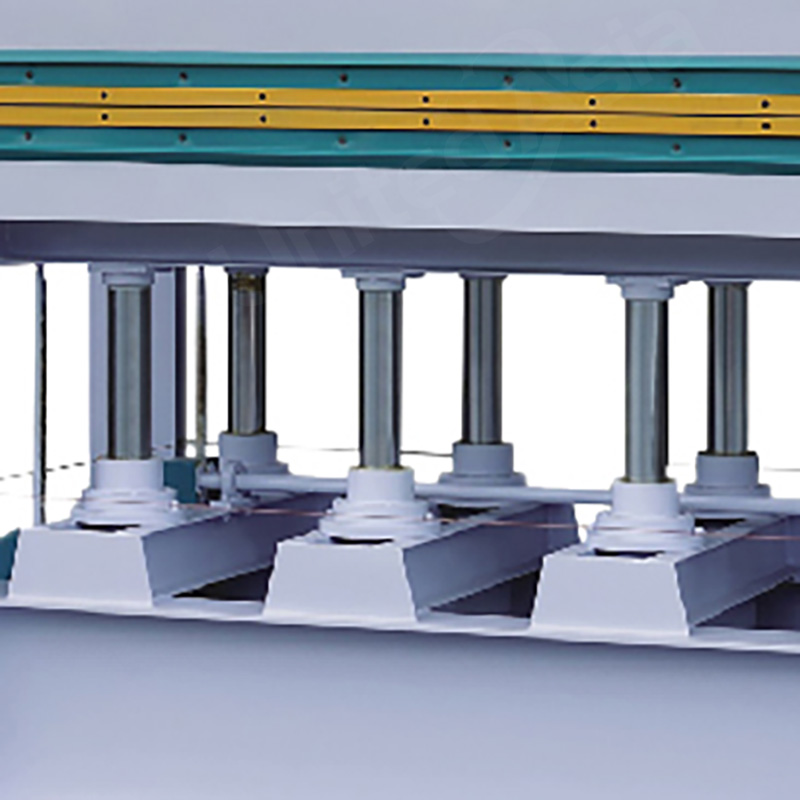

- Pressure plate design with uniform temperature distribution system over the entire surface.
- The pressure plates run parallel and smoothly, resulting in good processing results.
- Rigid structure prevents thermal deformation and provides long service life.
- Equipped with an emergency stop control device to ensure the safety of operators.
