MJ164 Single Rip Saw Machine For Wood Cutting
Parameters
|
Model |
MJ164 |
|
Saw blade diameter |
305-455mm |
|
Max. processing thickness |
120mm |
|
Short processing length |
250mm |
|
Spindle width |
Left 300/Right 640mm |
|
Spindle speed |
2900r.p.m |
|
Spindle diameter |
50.8mm |
|
Feeding speed |
3-23m/min |
|
Main motor power |
11kw |
|
Feed motor power |
1.5kw |
|
Total power |
12.5kw |
|
Blade thickness |
3.2-5.0mm |
|
Working desk size |
2000x1020mm |
|
Dimensions |
2250x1600x1350mm |
|
Machine weight |
1800kg |
Introduction

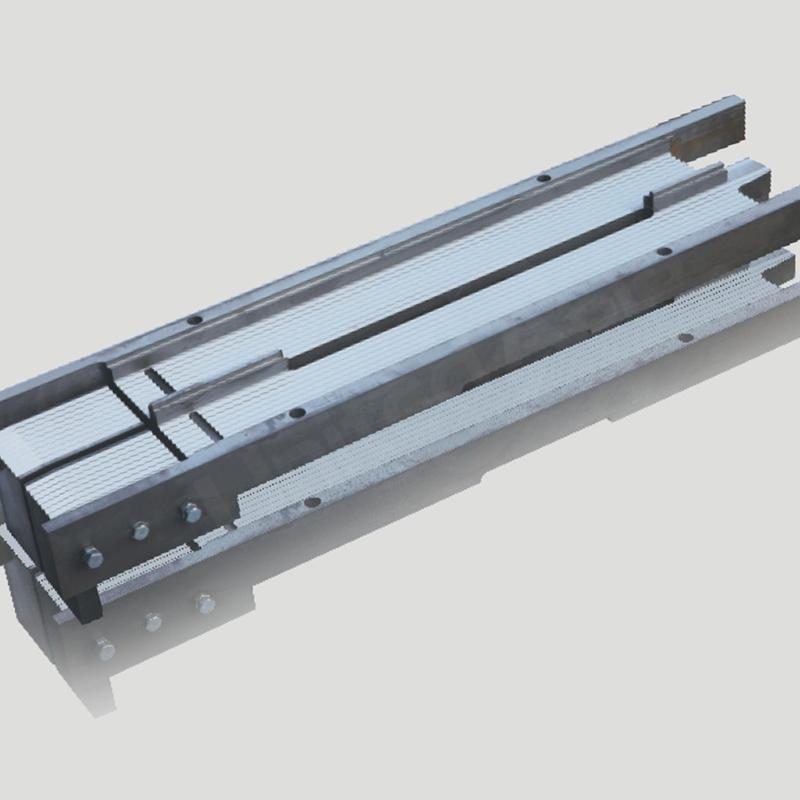

- Unique double-ended bearing support, multi-V precision manufacturing of linear guides and ultra-class wide conveyor chain, so delivery precision, smooth, good wear resistance.

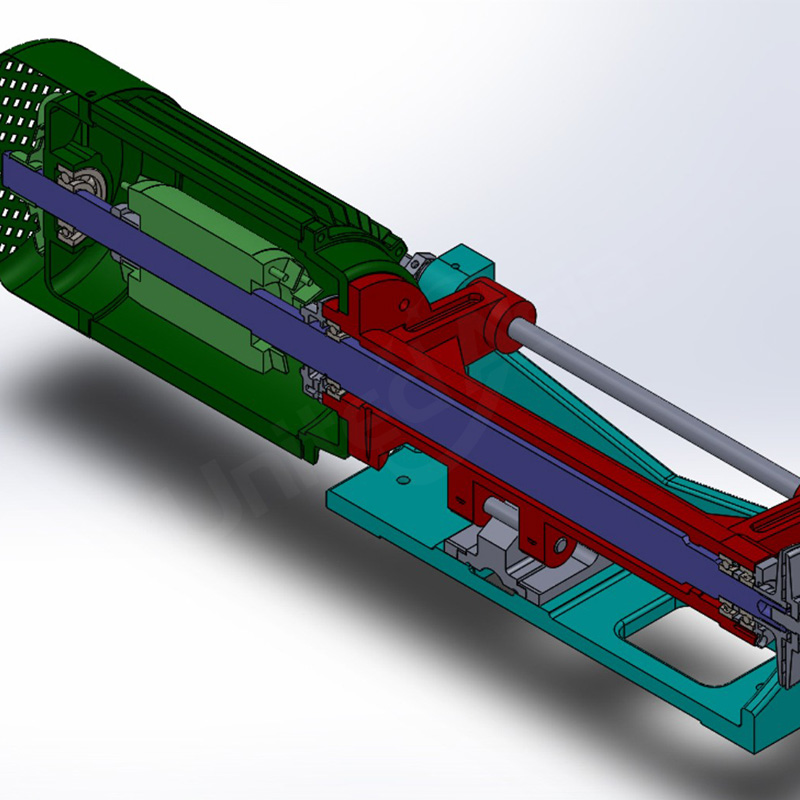

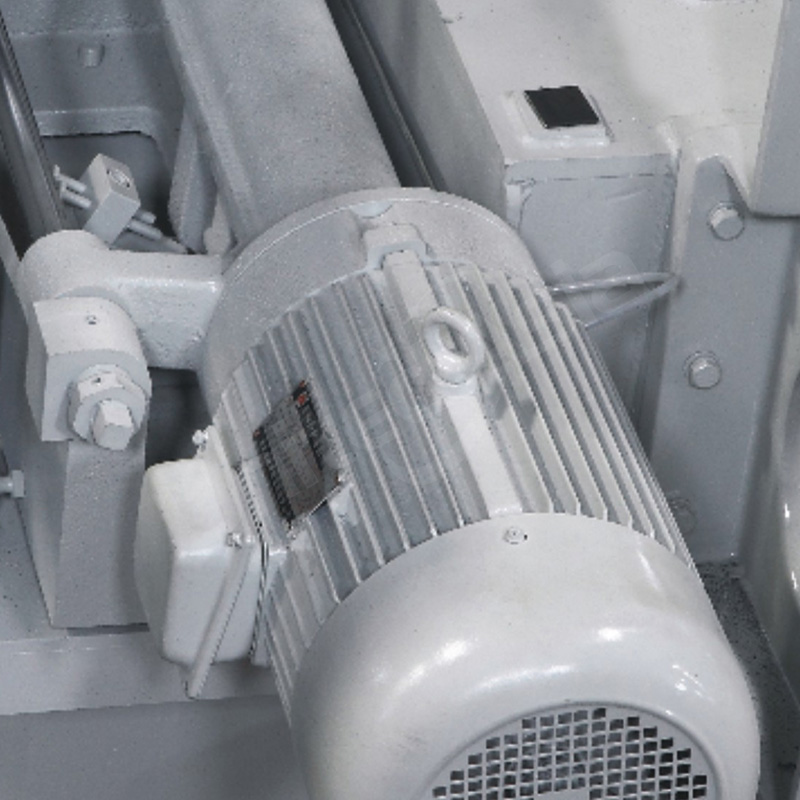

- Unique spindle and motor direct design, no power loss, no noise, high precision.
- Unique volumetric lubrication system to ensure excellent lubrication performance, so that the workpiece is smooth and precise delivery.
- The use of variable frequency speed feeding, making soft, hardwood sawing speed is reasonable, smooth incision, so that the workpiece size more accurate.
- Body plate with snap-type laser welding process, high strength, more beautful.
