MB450 Wholesale Double Side Planer Machine For Wood

Short Description:

MB450 Double side planer adopts a design of simultaneous planing on both sides, which greatly improves processing efficiency. It uses an intelligent control system to achieve highly precise planing and smoothing effects. We are always customer-oriented, constantly innovate and improve, and are committed to providing customers with better products and services. If you are interested in our MB450 double side planer, please contact us to learn more. We hope that our cooperation can add unlimited possibilities to the woodworking industry!


Product Detail

Product Tags

Introduction

- The cast iron lathe bed with good shock absorption and stability is processed by a CNC machining center to provide a good foundation for the cutter axis and feeding.

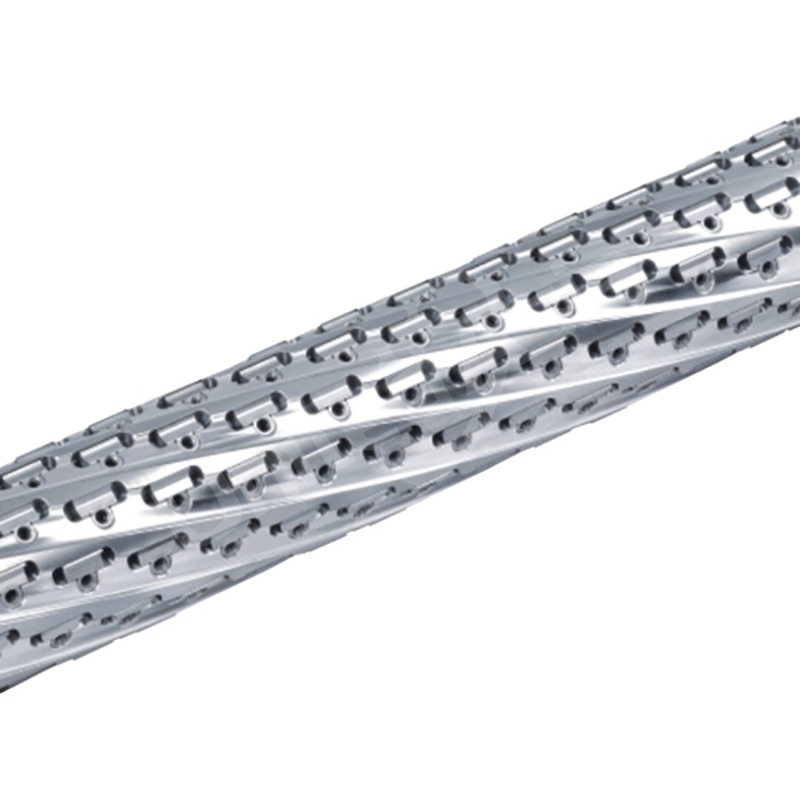

- The standard carbide spiral cutter shaft and high-precision imported bearings provide a very healthy heart for the whole machine.

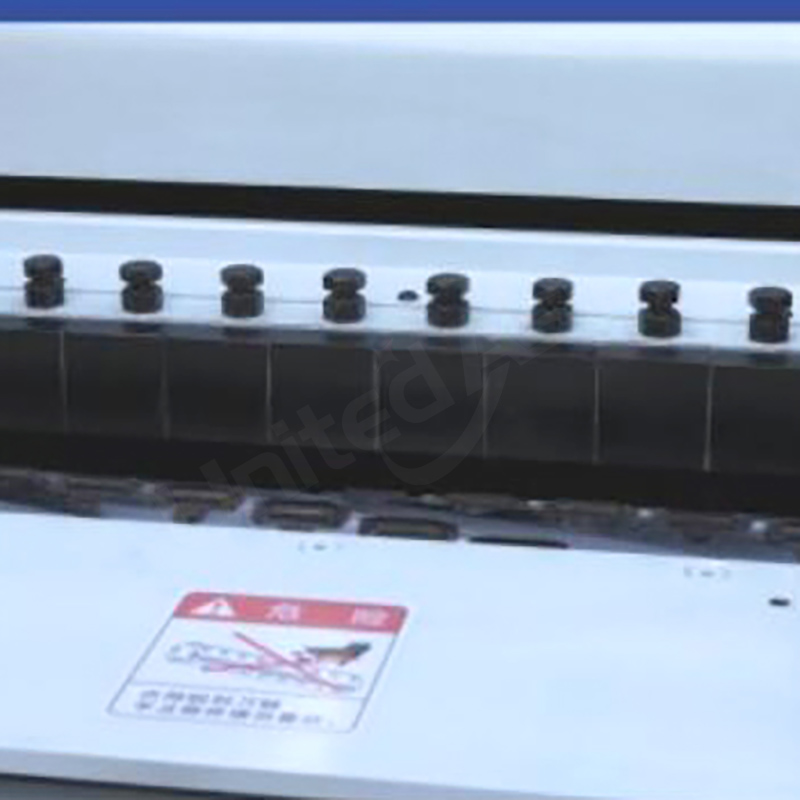

- The crawler-type elastic claw (equipped with a lifting function) can select the pressing distance of the elastic claw according to the thickness and degree of curvature of the wood, greatly improving the processing accuracy of the workpiece and delivering powerful materials.

- The cutter shaft, pressure roller and stable feeding mechanism on the machine tool are equipped with manual fine-tuning and motorized mechanisms to enable rapid and accurate positioning.

- The upper and lower feeding pressure rollers of the planing part are linked to feed the material, and the thrust force is strong and balanced.

- Imported electrical components are used to make the whole machine control sensitive and safe.

- The product is equipped with a digital display device imported from Taiwan, which can directly operate the processing thickness on the operation panel.

- The work surface is specially treated with hard chrome plating, which is wear-resistant and smooth.

Details

Parameters

Model

MB450

Working width

450mm

Working thickness

15-150mm

Min working length

320mm

Cutter Diameter

100mm

Feeding speed

7-16m/min

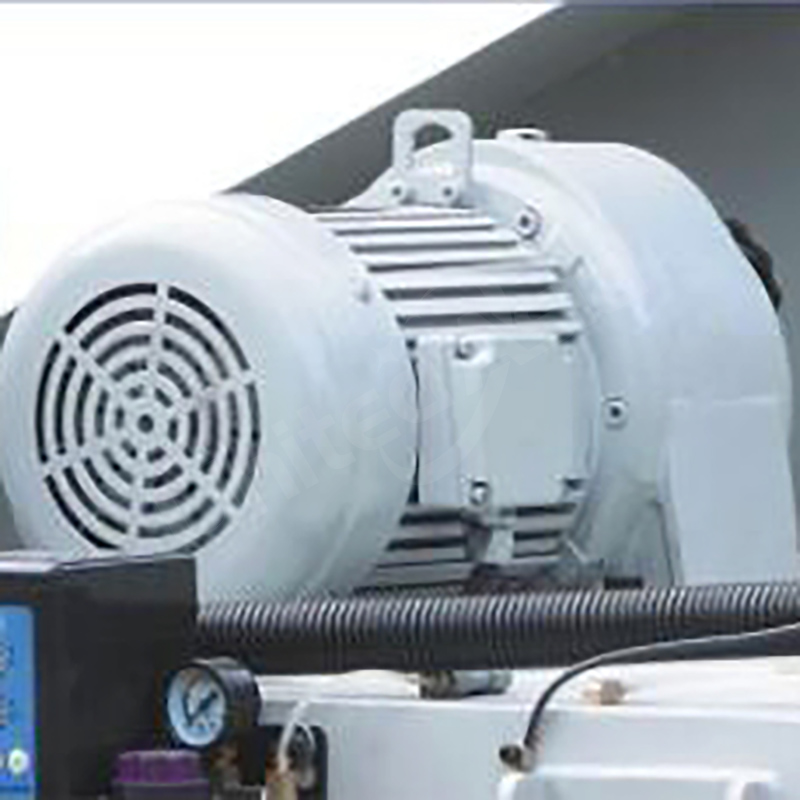

Upper spindle motor

7.5kw

Bottom spindle motor

5.5kw

Feed motor power

2.2kw

Elevation motor power

0.37kw

Total motor power

15.57kw

Duet exit

150x3

Net weight

2500kg

Packaging & Loading
