GT635 Heavy Duty Double Side Planer Supplier

Short Description:

The GT635 Heavy duty double side planer has powerful power and stable performance, and can complete planing on both sides at one time, greatly improving work efficiency. The machine is operated through the control panel, which is easy to use and ensures safety. If you are looking for a reliable and efficient double side plane machine, then choose our GT635 heavy duty double side plane without hesitation! Please feel free to consult us for more information. We will wholeheartedly provide you with high-quality products and services to help your woodworking processing career take off!


Product Detail

Product Tags

Introduction

- The cast iron lathe bed with good shock absorption and stability is processed by a pentahedral machining center. The lifting column adopts worm gear to provide a good foundation for the cutter axis and feeding.

- The standard carbide spiral cutter shaft and high-precision imported bearings provide a very healthy heart for the whole machine.

- The crawler-type elastic claw (equipped with a lifting function) can select the pressing distance of the elastic claw according to the thickness and degree of curvature of the wood, greatly improving the processing accuracy of the workpiece and delivering powerful materials.

- The cutter shaft, pressure roller and stable feeding mechanism on the machine tool are equipped with manual fine-tuning and motorized mechanisms to enable rapid and accurate positioning.

- The upper and lower feeding pressure rollers of the planing part are linked to feed the material, and the thrust force is strong and balanced.

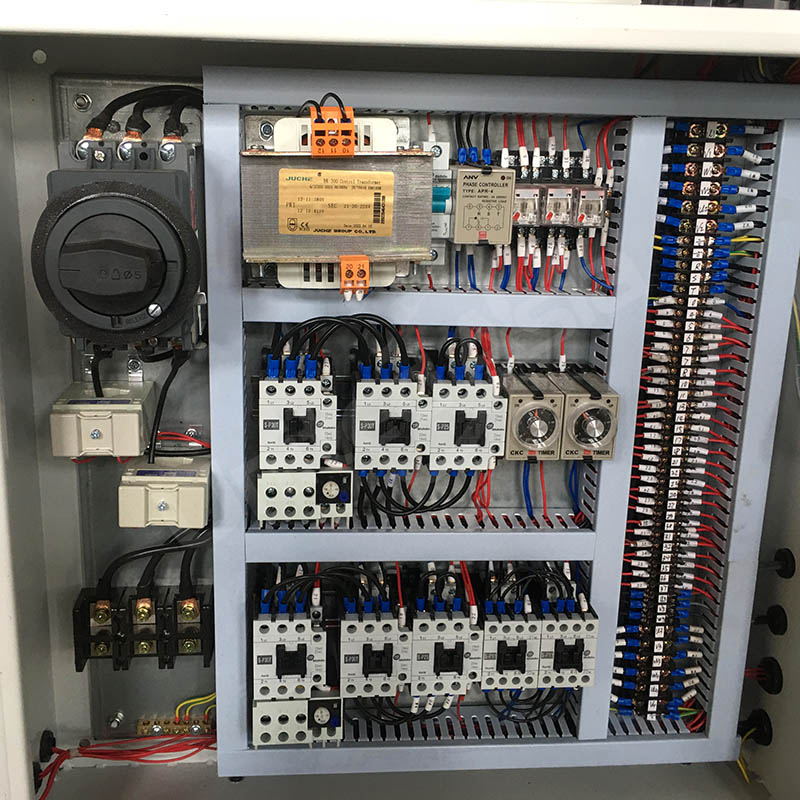

- Imported electrical components are used to make the whole machine control sensitive and safe.

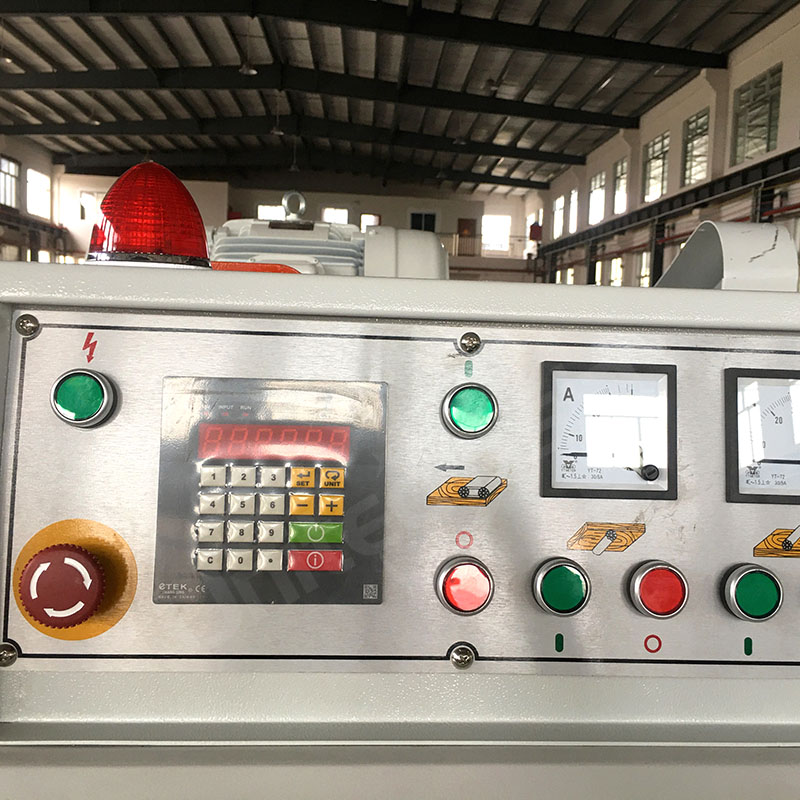

- The product is equipped with a digital display device imported from Taiwan, which can directly operate the processing thickness on the operation panel, with an accuracy of up to 0.1mm, and comes standard with variable frequency speed adjustment for feeding.

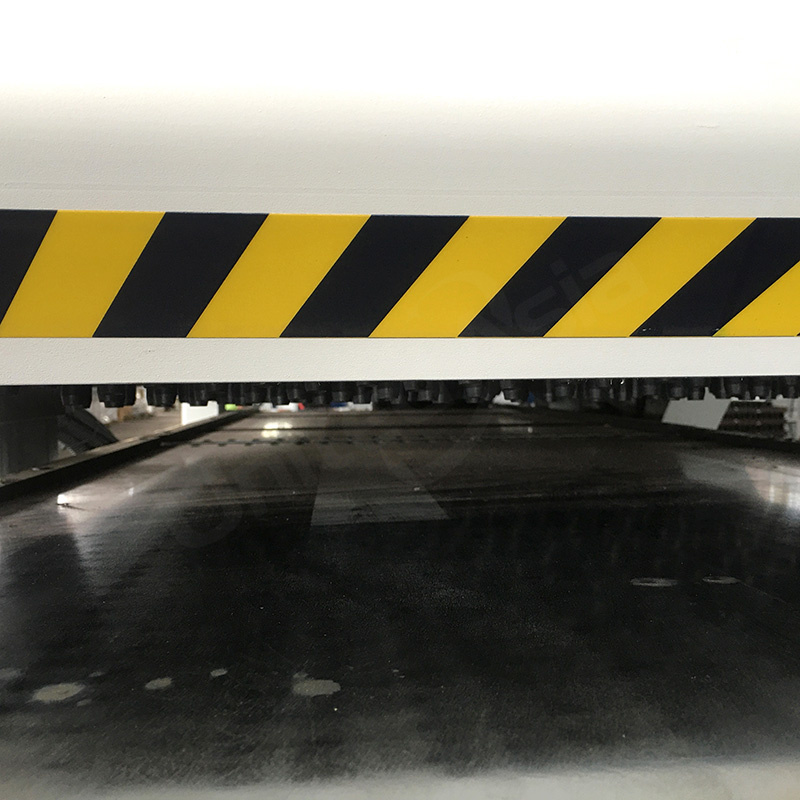

- The work surface is specially treated with hard chrome plating, which is wear-resistant and smooth.

Details

Parameters

Model

GT635

Max working width

635mm(25”)

Max working thickness

200mm(8”)

Min working thickness

10mm

Min working length

310mm

Number of planing blades

100pcs

Planer blade specifications

TCT30x12x1.5mm

Tool shaft diameter

(Outer diameter) 126mm

Knife shaft diameter

5000rpm

Variable frequency feed speed

8-18m/min

Vacuuming

5”(Upper)/6”(Lower)

Workbench area

27”x102”

Upper shaft motor

20HP

Lower shaft motor

15HP

Feed motor

3HP

Upper base lift motor

3/4HP

Mechanical dimensions

2672x1145x1700mm

Mechanical weight

3140kg

Mechanical packing size

2772x1280x1850mm

Mechanical packing weight

3800kg



Packaging & Loading
